Texas Instruments DLPLCRC910EVM Evaluation Module
Texas Instruments DLPLCRC910EVM Evaluation Module is based on the DLP® LightCrafter™ DLPC910 controller. The DLPLCRC910EVM reference design allows quicker development cycles for users of the DLPC910 architecture in support of DMDs that implement the DLPC910 controller. The TI DLPLCRC910EVM platform is intended for applications requiring high-speed pattern management and high-resolution patterns.
Features
- Controller EVM for DLP6500, DLP9000X/DLP9000XUV EVMs
- 2 x LVDS DDR input data interface up to 480MHz clock rate
Associated Products
Texas Instruments DLPC910 Digital Controller
Controller required for reliable operation of the DLP9000X and DLP6500 family of DMDs.
Associated EVMs
Texas Instruments DLPLCR90XUVEVM Evaluation Module
Based on the DLP9000XUV 0.9" high-speed WQXGA UV Type A DMD containing 2560 x 1600 micromirrors.
Texas Instruments DLPLCR90XEVM Evaluation Module
Includes the DLP9000X 0.9" WQXGA Type-A DMD containing 2560 x 1600 micromirrors with 7.56µm pitch.
Texas Instruments DLPLCR65FLQEVM Evaluation Module
Mounts the DLP6500FLQ 0.65 1080p Type A DMD, including 1920 x 1080 micromirrors with 7.56µm pitch.
Additional Resources

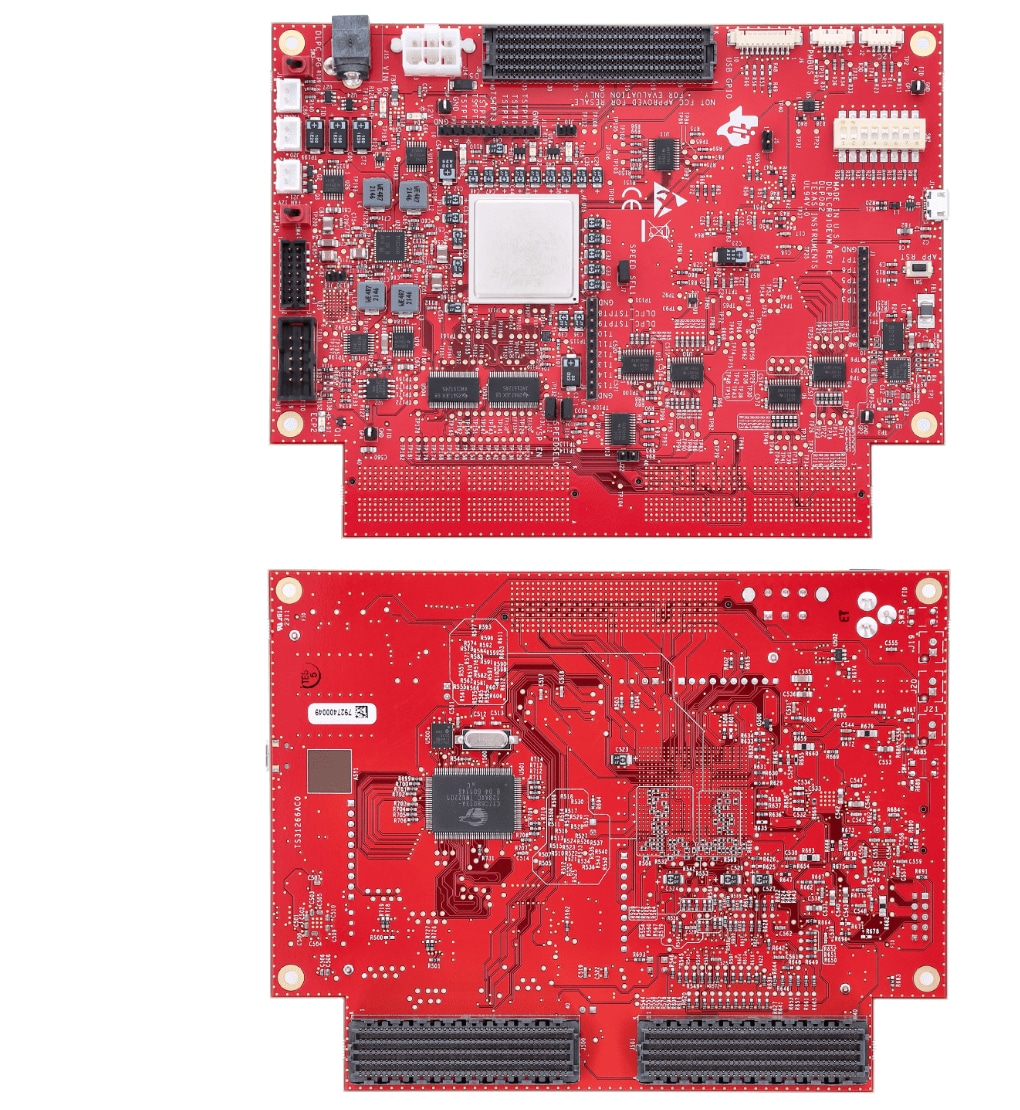

PCB Layout
