EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators

TDK B58004 Passivated High Active Stack (HAS) Multilayer Piezo Actuators offer a highly efficient, robust design that avoids polarization cracks with the help of small insulation zones. The B58004 modules are made of RoHS-compatible lead zirconate titanate (PZT) with an internal copper electrode. The actuators provide high cycle stability at high temperatures, a high melting metal bond, and resistance against humidity. Other features include copper inner electrodes, 160V polarization, and a -10V to +180V voltage range in a ceramic body available in a variety of dimensions. TDK B58004 Passivated HAS Multilayer Piezo Actuators are ideal for nanopositioning systems, high-precision valve control for liquids and gases, and bonding wire machines.

Features

  • High Active Stacks (HAS) technology
  • Highly efficient actuator design with small insulation zones
  • Copper inner electrodes for superior robustness against humidity and cost-effectiveness
  • Lead-free high melting metal bond for operation at high temperatures
  • Minimized inactive areas for higher performance, longer lifetime, and compact design
  • Robust design that avoids polarization cracks
  • High reliability
  • High cycle stability at high temperatures
  • Outstanding resistance against humidity

Specifications

  • 1µF to 6.3µF capacitance range
  • >40MΩ insulation resistance
  • -10V to +180V voltage range
  • RoHS-compatible lead PZT ceramic with a high coupling factor
  • Copper inner electrodes
  • Passivated stack
  • Polarized with 160V
  • Contains SVHC substance 12626-81-2
  • -40°C to +160°C surface temperature range

Applications

  • Nanopositioning systems
  • High-precision valve control for liquids and gases
  • Bonding wire machines

Performance Graphs

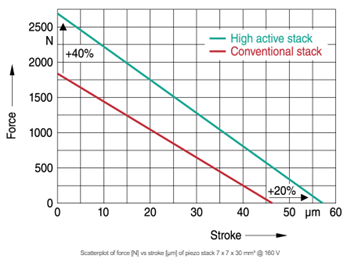

Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators

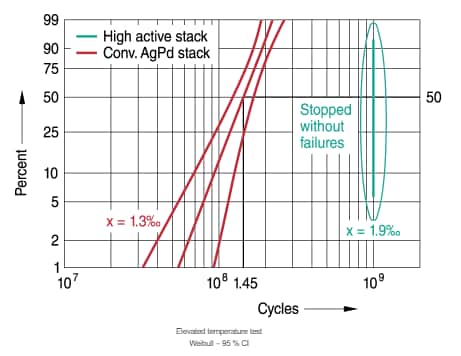

Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators
Performance Graph - EPCOS / TDK B58004 Passivated HAS Multilayer Piezo Actuators
View Results ( 5 ) Page
N.º de artículo Hoja de datos Longitud Frecuencia autorresonante Fuerza de operación Régimen de voltaje Carrera Estilo de terminación Temperatura de trabajo mínima Resistencia
B58004M4037A020 B58004M4037A020 Hoja de datos 7 mm 2600 N - 10 V to 180 V 55 um SMD/SMT - 40 C
B58004M4040A020 B58004M4040A020 Hoja de datos 5.2 mm 30 kHz 1400 N - 10 V to 180 V 83 um SMD/SMT - 40 C
Z63000Z2910Z001Z77 Z63000Z2910Z001Z77 Hoja de datos 3.4 mm 48 kHz 600 N - 10 V to 180 V 47 um Wire Leads - 40 C
Z63000Z2910Z001Z78 Z63000Z2910Z001Z78 Hoja de datos 5.2 mm 165 kHz 1400 N - 10 V to 180 V 16 um - 40 C
B58004M4030A020 B58004M4030A020 Hoja de datos 30 mm 44 kHz 1400 N - 10 V to 180 V 55 um - 40 C 40 MOhms
Publicado: 2019-02-18 | Actualizado: 2024-06-28
