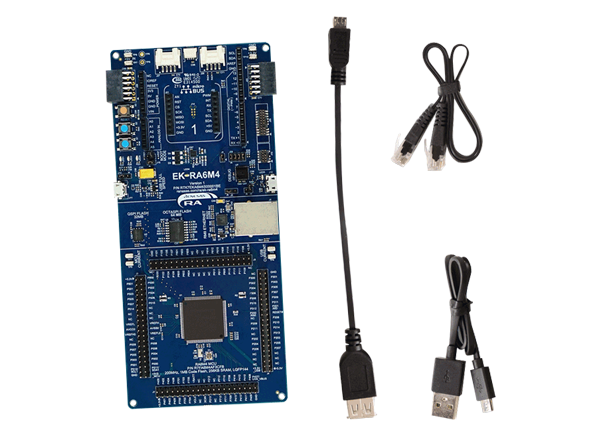

Renesas Electronics RA6M4 Evaluation Kit
Renesas Electronics RA6M4 Evaluation Kit is designed to evaluate RA6M4 32-bit ARM® microcontroller including on-chip debugger. This RA6M4 32-bit ARM® microcontrollers are built on a high efficient 40nm process.
Features
- 200MHz Arm® Cortex®-M33 core with Trustzone
- 8kB data flash to store data as in EEPROM
- 1kB stand-by SRAM
- Scalable from 64-pin to 144-pin packages
- Capacitive touch sensing unit
- 512kB to 1MB flash memory and 192kB SRAM with parity and 64kB SRAM with ECC
- Integrated security crypto module with several Cryptography accelerator includes:
- Accelerators
- Key management support
- Tamper detection
- Power analysis resistance
- Large 256kB embedded SRAM with parity / ECC and also 1kB standby RAM for low-power apps and strong safety
- Dual-bank-flash with background operation
- Ethernet controller with Direct Memory Access (DMA)
- USB2.0 full speed
- CAN 2.0B
- QuadSPI and OctaSPI
- Serial Communications Interface (SCI) (UART, Simple Serial Peripheral Interface (SPI), and simple I2C)
- SPI/ I2C multimaster interface
- Secure Digital Host Interface (SDHI) and MMC
Applications
- Wired Ethernet applications
- Enhanced security:
- Fire detection
- Burglar detection
- Panel control
- Metering:
- Electricity
- Automated meter reading
- General purpose
- Industry
- Robotics
- Door openers
- Sewing machines
- Vending machines
- UPS
- Boiler control and Heating, Ventilation, and Air Conditioning (HVAC)
