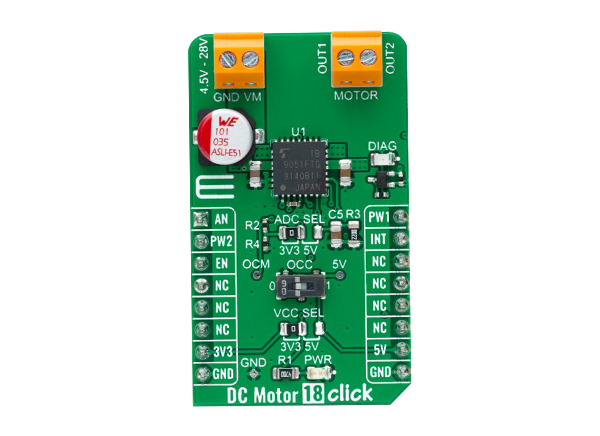

Mikroe DC Motor 18 Click
Mikroe DC Motor 18 Click features the Toshiba Semiconductor TB9051FTG automotive PWM-type single-channel H-Bridge DC brushed motor driver. The Forward/Reverse/Brake mode is selected according to PWM control signals. The motor operation and stop mode is chosen by an enable pin. It has a wide operating voltage range of 4.5V to 28V with an output current capacity of 5A max. It also features built-in protection against under-voltage, overcurrent, and overtemperature conditions.

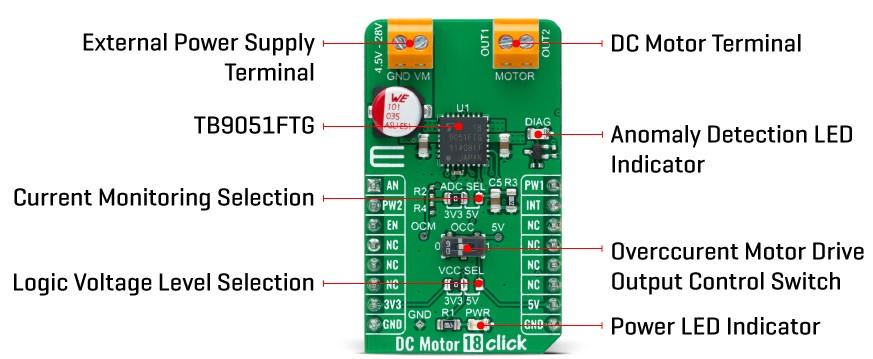

Features
- On-board modules
- Toshiba Semiconductor TB9051FTG motor driver which incorporates the output driver for the direct drive of a DC brushed motor intended for automotive use
- Low power consumption
- Ultra-low on-resistance
- Anomaly detection features
- Selectable motor operation
- PWM control
- Diagnosis indicator
- High-side current monitoring
- Analog, GPIO, PWM interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Applications
- Throttle and valve control
- Various engine bulbs
- Storing of door mirrors
- Seat positioning
Overview
