Kaga FEI BLUETOOTH® Low Energy Modules

Kaga FEI BLUETOOTH® Low Energy Modules offer a wide variety of features, characteristics, and applications. The BLE modules provide a 1.7V to 5.5V single power supply and a 2402MHz to 2480MHz frequency. The Integrated system includes a 32-bit processor, high-performance PCB antenna, and a -40°C to +85°C operating temperature range. The BLE modules supply SPI, UART, I2C, I2S, PDM, and 12-bit ADC interfaces.

The Kaga FEI Bluetooth Low Energy Modules are used in home security, asset tracking, agricultural monitoring, and outdoor applications.

Features

  • 2402MHz to 2480MHz frequency
  • 1.7V to 5.5V single power supply
  • Single-mode Bluetooth 5.0
  • Integrated system
  • Integrated high-performance PCB antenna
  • 32-bit processor
  • SPI, UART, I2C, I2S, PDM and 12-bit ADC interfaces
  • -40°C to +85°C operating temperature range
  • Bluetooth and Japan, FCC, ISED qualified
  • ETSI EN 300 328 v2.2.2 conducted test report available
  • RoHS compliant/complete lead free

Applications

  • Beacon
  • Home security
  • Asset tracking
  • Agricultural monitoring
  • Warehouse management
  • Smart factory
  • Smart dairy farming
  • Handy terminal
  • Outdoor application

EJ5340BA1 Block Diagram

Block Diagram - Kaga FEI BLUETOOTH® Low Energy Modules

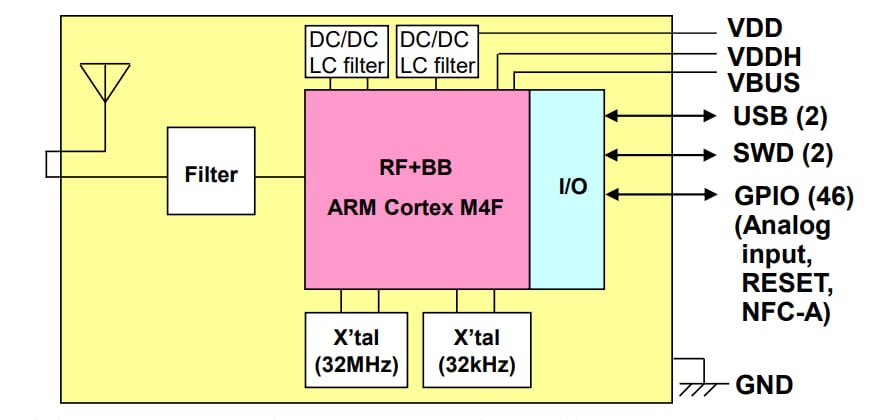

EB2840AA2 Block Diagram

Block Diagram - Kaga FEI BLUETOOTH® Low Energy Modules

EJ2840AA2 Block Diagram

Block Diagram - Kaga FEI BLUETOOTH® Low Energy Modules
Publicado: 2025-07-02 | Actualizado: 2025-07-14
