Intel 12th Gen Core Mobile Processors

Intel 12th Gen Core Mobile Processors offer differentiated capabilities, a performance hybrid architecture with Intel® Thread Director,  and value for mobile hardware targets in key IoT use cases. Media accelerators and up to 96 graphics execution units (EUs), driven by Intel® Iris® Xe Graphics, deliver high-performance graphics and fast video processing for immersive experiences or highly parallel AI workloads. The 12th Gen Intel Core Mobile Processors are highly versatile, offering a balance of performance and power with up to 14 cores and 20 threads, a 45W processor base power, and high-bandwidth DDR5 and LPDDR5 memory.

Features

  • Performance
    • Intel® 7 process technology
    • Up to 146 cores, up to 20 threads in IoT models
    • Up to 24MB Intel® Smart Cache
    • Processor base power of 45W
  • Graphics
    • Intel Iris Xe Graphics with up to 96 EUs
    • HDMI 2.1 (with LSPSON) and support for up to four concurrent displays with up to 4K60 HDR resolution or one display at 8K resolution
    • Up to two video decode boxes (VDboxes), support for up to 48 simultaneous 1080p input streams
    • Pipelock video synchronization for Windows, graphics, and display virtualization
  • Accelerated AI
    • High graphics EU count (up to 96) for highly parallel AI workload processing in applications like medical imaging and network video recorders (NVRs)
    • Intel DL Boost with VNNI instructions on the CPU and DP4a (int8) instructions on the GPU to accelerate AI inferencing workloads with the Intel Distribution of OpenVINO toolkit
  • Memory and I/O
    • Up to DDR5-4800; LP5-5200 (2R); and up to DDR4-3200, LP4x-4267 memory
    • Up to 16 lanes PCIe 4.0 on the CPU
    • Up to 12 lanes PCIe 3.0 on the PCH
  • Security and manageability
    • Intel vPro® platform eligible on select models
    • Intel Converged Security and Management Engine version 16
  • Flexible deployments
    • Soldered-down BGA package built for low z-height package and mechanical integrity in compact IoT applications
    • Long-life availability to support ongoing validation and certification in key markets
  • Software
    • Windows 10 IoT Enterprise 2021 LTSC
    • Yocto Project Linux
    • Celadon (Android) in VM (community support)
    • KVM and ACRN (community support)
    • UEFI, Slim Bootloader
    • Software development kits
  • Connectivity
    • Discrete Thunderbolt™ 4 or USB4
    • Integrated 1GbE port, 2.5GbE discrete LAN
    • Support for discrete Intel® Wi-Fi 6E/BLUETOOTH® 5.2 (Intel® AX 210) and integrated Intel® Wi-Fi 5/BLUETOOTH® 5.1 (Intel® Wireless-AC 9560) with embedded-use conditions
    • Intel 5G platform based on Intel's host modem SW and M.2 module from Fibocom

Applications

  • Retail/banking/hospitality/education
    • Small format retail for point-of-sale (POS)
    • Digital security
    • Digital signage
    • Video-walls
  • Healthcare
    • Ultrasound imaging
    • Medical carts
    • Endoscopy
    • Clinical devices
  • Industrial manufacturing
    • Assembly line verification
    • Defect detection
    • Human-machine interfaces (HMIs)
  • AI video at the edge across verticals
    • Network video recorders (NVRs)
    • Healthcare
    • Manufacturing
    • Retail
    • Smart city

Specifications

  • 8 to 14 processor cores
  • 4 or 6 P-cores
  • 4 or 8 E-cores
  • 12 to 20 threads
  • 12MB, 18MB, or 24MB Intel® Smart Cache (L3)
  • Maximum turbo frequency ranges
    • 4.3GHz to 4.6GHz for P-cores
    • 3.3GHz to 3.5GHz for E-cores
  • Processor base frequency ranges
    • 1.1GHz to 2.5GHz for P-cores
    • 1.5GHz or 1.8GHz for E-cores
  • 1.15GHz to 1.35GHz maximum graphics frequency range
  • 48, 80, or 96 execution units (EUs)
  • 1 or 2 video decoder boxes
  • 64GB maximum memory capacity

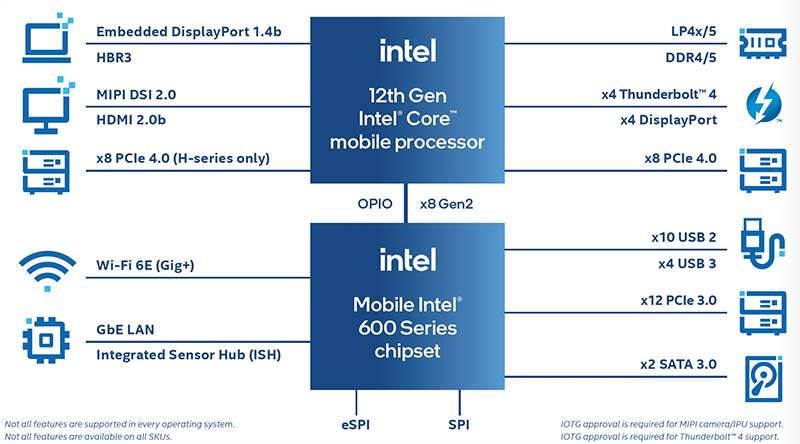

Processor Block Diagram

Intel 12th Gen Core Mobile Processors
