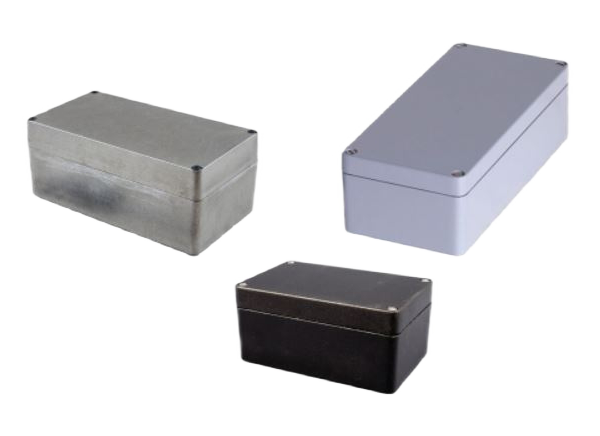

Hammond Manufacturing 1590Z Type 4X/6P Diecast Aluminum Enclosures

Hammond Manufacturing 1590Z Type 4X/6P Diecast Aluminum Enclosures are rugged, diecast aluminum alloy enclosures for electronic instruments. Hammond 1590Z Enclosures are tough but easy to machine. The two-piece tongue-and-groove construction with a replaceable one-piece silicone rubber gasket provides protection against dust and water (IP68 rated). The gasket is supplied loose inside the enclosure and has a temperature rating of -40°C to +150°C. The series is ideal for repetitive opening and closing.

Features

Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosures
Two-piece tongue-and-groove construction with a replaceable one-piece silicone rubber gasket provides protection against dust and water
Gasket supplied loose inside the enclosure (not pre-installed)
Four recessed stainless steel machine screws secure lid into tapped holes
Lid screws are self-captivating (lid holes are threaded with first installation of lid screws except for 1590Z060, 1590Z061, 1590Z062, and 1590Z063)

Easy to wall mount using through box-blind hole construction, outside of gasket protection
Ideal for repetitive opening and closing
IP68 ingress protection
North American Mark of Safety - cUL and UL listed, certified to Type 4, 4X, 6, 6P
All sizes except 1590Z060 carry an impact rating of IK08 per IEC62262
Painted versions painted inside and out with tough powder paint, choice of textured black or smooth gray (RAL 7001)
-40°C to +150°C gasket temperature rating
