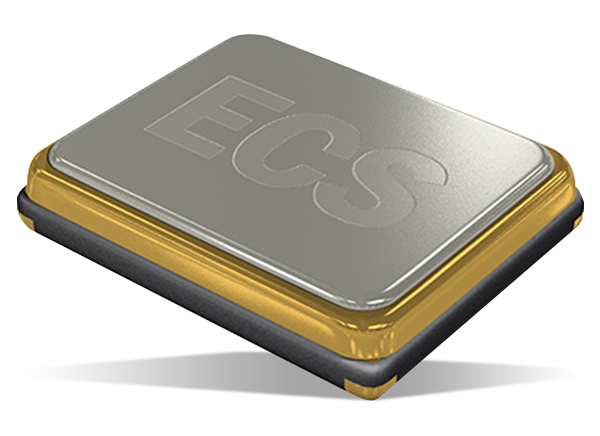

ECS ECX-2236B SMD Crystals feature a low-profile design and low first-year aging of ±1ppm (max). The series comes in a 2.5mm x 2.0mm x 0.55mm ceramic package, ideal for SMD manufacturing. Other features include 12MHz to 50MHz frequency range, 3pF shunt capacitance, and -30°C to +85°C operating temperature range. Applications for ECS ECX-2236B SMD Crystals include the Internet of Things (IoT) and wearables.

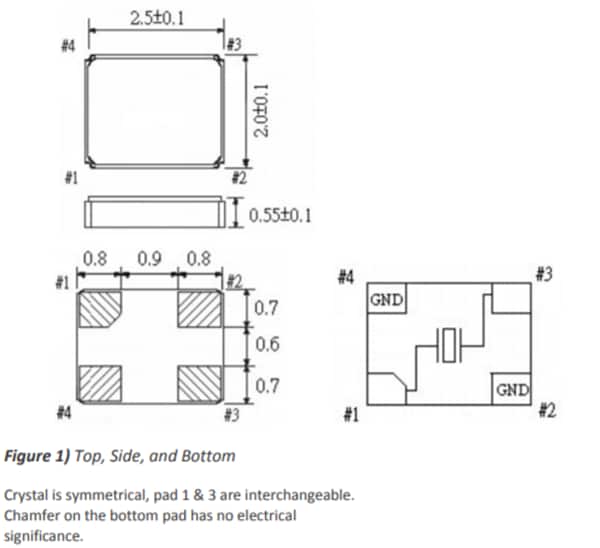

2.5mm x 2.0mm x 0.55mm ceramic package
Low first-year aging of ±1ppm (max)
12MHz to 50MHz frequency range
3pF shunt capacitance
-30°C to +85°C operating temperature range
-55°C to +125°C storage temperature range
ECS ECX-1637B SMD Crystals
2mm x 1.6mm x 0.45mm package, low first-year aging of ±1ppm maximum, 16MHz to 50MHz frequency range.
