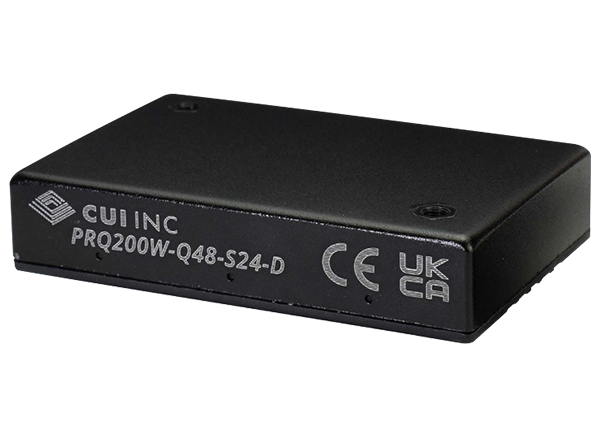

CUI Inc PRQ200W-D 200W Isolated DC-DC Converters
CUI Inc. PRQ200W-D 200W Isolated DC-DC Converters are quarter-brick converters housed in a fully encapsulated aluminum alloy case with a black plastic bottom and a UL 94V-0 rating. These high-power DC-DC converters offer EN 62368-1 certification with up to 91% efficiency and an ultra-wide 4:1 input range. The CUI Inc. PRQ200W-D 200W Isolated DC-DC Converters are ideal for data, telecom, robotics, and industrial applications where a large amount of power is needed in a compact package.
Features
- 1/4-brick package with an industry-standard pin-out, DIP package
- 4:1 ultra-wide input voltage range
- Single regulated output
- High efficiency up to 91%
- Remote on/off control
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Five-sided shielded case
- Available with a heat sink or base plate
- EN 62368-1 certified
- RoHS compliant
Applications
- Data
- Telecom
- Robotics
- Industrial
Specifications
- Input voltage
- 48VDC typical
- 18VDC to 75VDC range
- -0.7VDC to 90VDC input surge voltage range
- 200W isolated output
- 5VDC to 48VDC output voltage range
- 4.2A to 40.0A maximum output current
- 250kHz typical switching frequency
- ±3% typical transient response
- ±0.03%/°C temperature coefficient
- 2250VDC isolation
- 250mVp-p or 300mVp-p maximum ripple and noise
- 88% to 91% efficiency range
- 100MΩ minimum isolation resistance
- 2200pF isolation capacitance
- Temperature ranges
- -40°C to +85°C operating
- -55°C to +125°C storage
- 5% to 95% storage humidity range, non-condensing
- Dimensions
- 61.8mm x 40.2mm x 12.7mm
- 62.0mm x 56.0mm x 14.6mm with base plate
- 61.8mm x 40.2mm x 27.7mm with heat sink
- Natural convection cooling
- UL 94V-0 flammability rating
