Analog Devices Inc. EVAL-ADMV8432 Evaluation Board for ADMV8432

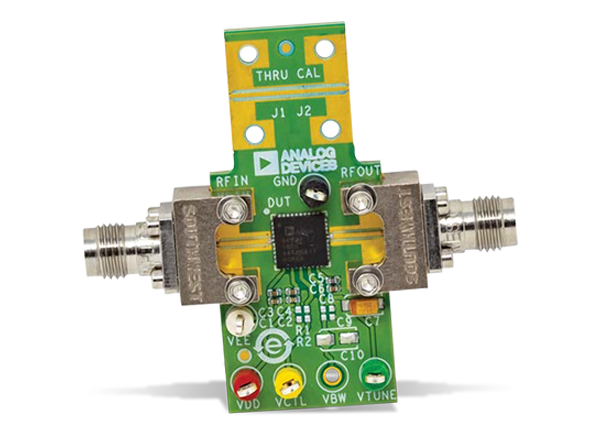

Analog Devices Inc. EVAL-ADMV8432 Evaluation Board for ADMV8432 evaluates the ADMV8432 bandpass filter with selectable passband frequency. The ADMV8432-EVALZ evaluation board has end-launch 2.4mm connectors on the input and output for an efficient connection to test equipment and other circuitry. Optimized power and ground planes ensure low noise and high-speed operation. Component placement and power supply bypassing are optimized for maximum circuit flexibility and performance.
Features
- Enables quick breadboarding and prototyping
- User-defined circuit configuration
- End-launch 2.4mm connector provisions
- Easy connection to test equipment and other circuits
