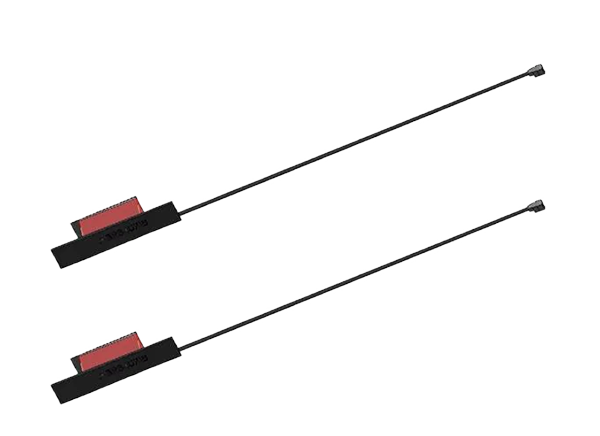

Abracon ABR LPWA Board Antennas

Abracon ABR LPWA Board Antennas offer long-range, low power ability to penetrate dense building materials while measuring 34mm x 7mm x 0.8mm in dimension. High gain and high durability make the ABR LPWA Board Antennas ideal for IoT-connected smart buildings and homes. These antennas deliver efficient, flexible, and cost-effective connectivity for indoor and outdoor IoT applications.

Features

  • Low profile PCB antennas
  • Compact design
  • Linear polarization
  • Adhesive mount
  • Customizable RF cable and connector options
  • Moisture Sensitivity Level (MSL) 1
  • Double-sided foam (ABR3407I8 only)
  • RoHS compliant

Applications

  • LPWA/LoRA/SigFox/ISM
  • Remote technology/monitoring
  • Network devices
  • Smart home
  • Consumer tracking

Specifications

  • Operating frequency ranges
    • 868MHz to 870MHz for the ABR3407I8
    • 902MHz to 928MHz for the ABR3407I9
  • Maximum return loss
    • -21.66dB for the ABR3407I8
    • -12dB for the ABR3407I9
  • 50Ω impedance
  • Peak gain
    • 1.28dBi typical for the ABR3407I8
    • 1.84dBi maximum for the ABR3407I9
  • 34mm x 7mm x 0.8mm in dimension
  • -40°C to +85°C temperature range
  • Up to 95% relative humidity

Datasheets
