4D LCD 5.0" TFT LCD Modules

4D LCD 5.0" TFT LCD Modules are color-active matrix LCD modules that integrate an amorphous silicon thin-film transistor. These LCD modules incorporate a color TFT-LCD panel, driver IC, FPC, and a backlight unit. The TFT LCD modules include optional Resistive/Capacitive Touch Panels (RTP or CTP) and an optional Cover Lens Bezel (CLB). The 5.0" TFT LCD modules' display area contains 800x 480 pixels. These LCD modules are RoHS compliant and operate within the -20°C to 70°C temperature range.

Features

TFT / transmissive / IPS LCD types
5" size
Available with/without Resistive/Capacitive Touch Panels (RTP or CTP) and with/without Cover Lens Bezel (CLB)
ALL viewing direction
108mm × 64.80mm active area (W x H)
0.135mm x 0.135mm dot pitch (W x H)
800 x 480 display resolution pixels
Parallel RGB 24-bit interface type
Surface luminance:
- 4DLCD-50-800-480-NT: 600cd/m² (typical)
- 4DLCD-50-800-480-RT: 400cd/m² (typical)
- 4DLCD-50-800-480-CT: 400cd/m² (typical)
- 4DLCD-50-800-480-CT-CLB: 516cd/m² (typical)
16.7M color depth

ST7262A driver IC
18 LEDs backlight type
RGB vertical stripe pixel arrangement
AG surface treatment
3.3V (typical) input voltage
Module Size - W x H x T
- 4DLCD-50-800-480-NT: 120.70mm x 75.80mm x 3mm
- 4DLCD-50-800-480-RT: 120.70mm x 75.80mm x 4.2mm

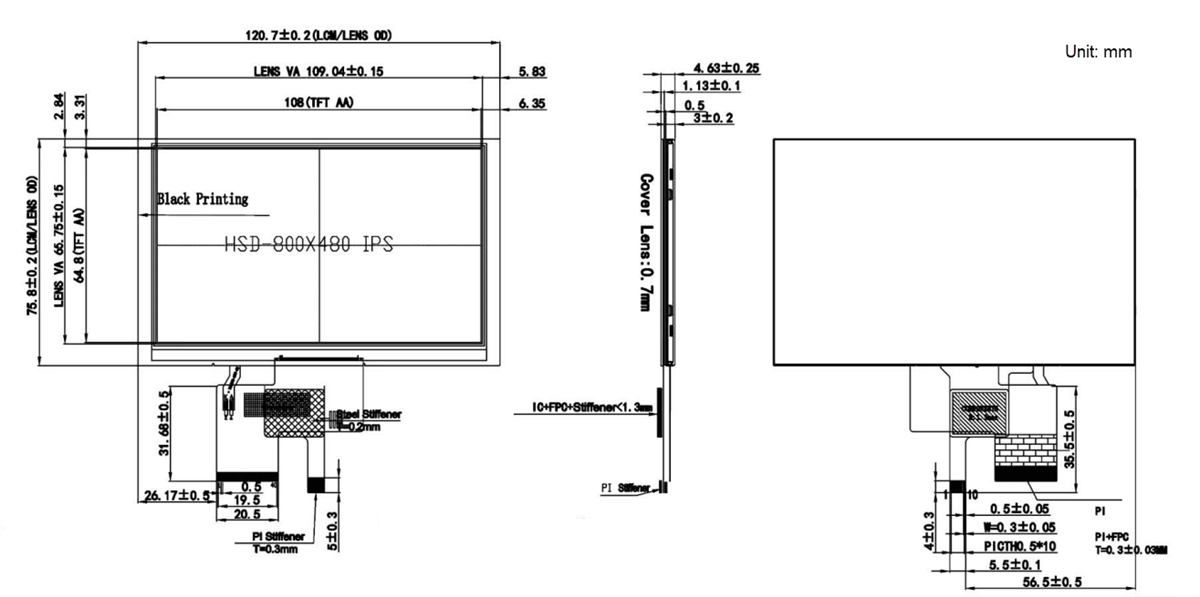

- 4DLCD-50-800-480-CT: 120.70mm x 75.80mm x 4.63mm

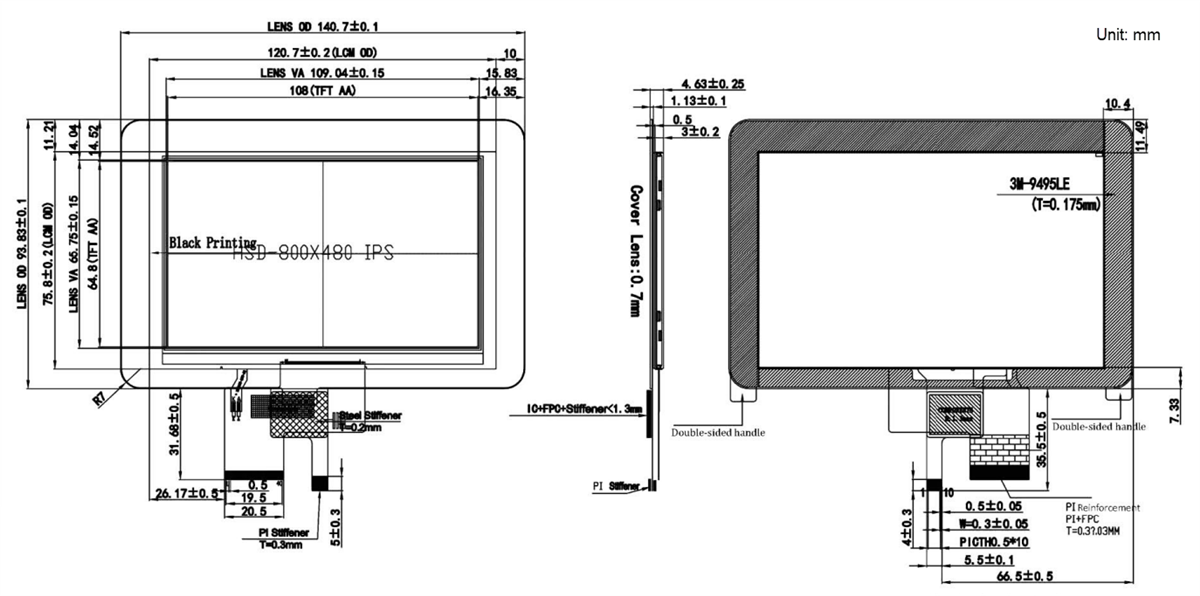

- 4DLCD-50-800-480-CT-CLB: 140.70mm x 93.83mm x 4.63mm (Including CLB)
-20°C to 70°C operating temperature range
RoHS compliant
